企业级zabbix监控实战——OneOaaS-Graphtree图形树插件【显哥出品，必为精品】

部署Graphtree插件

1.插件准备

2.部署Graphtree

#进入zabbix工作目录
[root@zabbix-server ~]# cd /usr/share/zabbix/
#上传graphtree3.0.4插件
[root@zabbix-server /usr/share/zabbix]# ls-l graphtree3.0.4.patch
-rw-r--r-- 1 root root 3226614 2019-12-18 21:23 graphtree3.0.4.patch
#安装patch
[root@zabbix-server /usr/share/zabbix]# yum install -y patch
[root@zabbix-server /usr/share/zabbix]# patch -Np0 < graphtree3.0.4.patch
[root@zabbix-server /usr/share/zabbix]# chown -R apache:apache oneoaas/
#插入一行oneoaas代码
[root@zabbix-server /usr/share/zabbix]# vim /etc/httpd/conf.d/zabbix.conf
Alias /zabbix /usr/share/zabbix
Alias /oneoaas /usr/share/zabbix/oneoaas
#重启httpd服务
[root@zabbix-server /usr/share/zabbix]# systemctl restart httpd

3.刷新zabbix页面即可看到多了一个Graphtree按钮

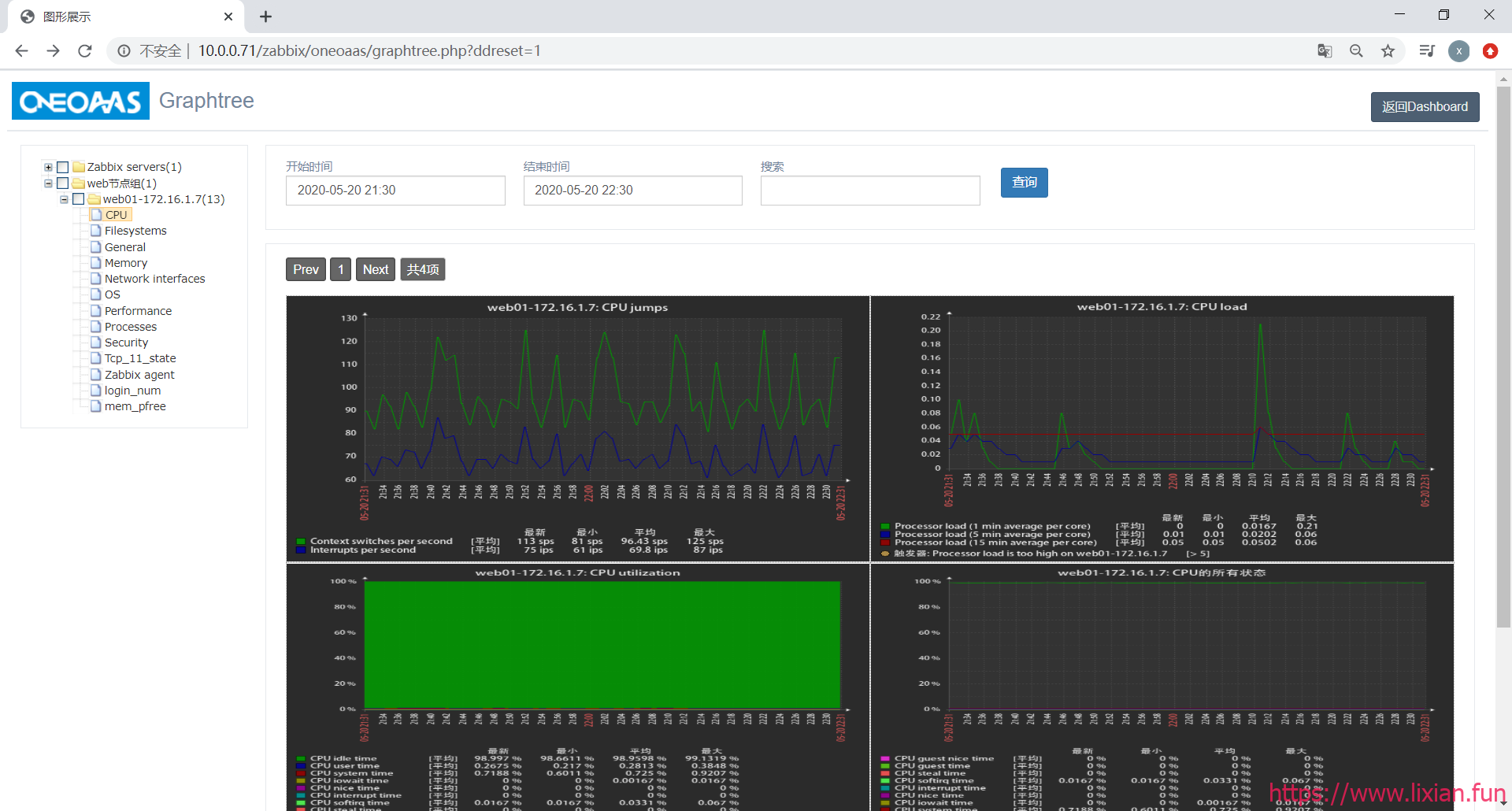

4.这就是Graphtree图形树插件的页面
